55.1.5mm 1064nmAR Yellow Film Laser Optical Lens Imported Quartz
JGS1 up 300W
Laser protective lens
Laser Optical Lens base material is quartz material, which is transparent. Laser Optical Lens is finely processed by grinding, polishing, coating and other
processes. From the side, Laser Optical Lens it shows light color. Laser Optical Lens is mainly used in laser cutting to prevent splashing of sundries
and avoid splashing to damage the lens. Laser Optical Lens is widely used in laser welding machine, laser cutting machine,
laser marking machine and so on. For the needs of various styles, we will do it.
It is made of imported crystal material through precise cutting,
grinding, polishing, coating and other processes. Double-sided
coating 1064nmAR anti-reflection coating.
parameter of Laser Optical Lens
| Product name | 55.1.5mm 1064nmAR Yellow Film Laser Optical Lens Imported Quartz
JGS1 up 300W |
| dimension | 55*1.5mm |
| Coating | 1064nmAR(Double coated) |
| Dia tolearance | -0.1mm |
| Thickness tolearance | ±0.1mm |
| Chamfer | 45 degree*0.2mm |
| claim | laser welding/cutting/marking machine |
| Material | Imported Quartz JGS1 |
| virtue | 1. Top quality glass with CE certificate,exporting to more 60
countries in the world |
| 2. Unique designed strong wooden case, solving the problem of
breakage |
| 3. Professional sales team, offering personalized and dedicated
services. |
| 4. 24-hours online, we could discuss the item whenever and
wherever. |
Fearture of Laser Optical Lens
1. Hard 4-5 times higher than ordinary float glass, with more than
thermal cracking annealed or heat strengthened glass.
2. Once the rupture, the glass will break down into small cubes
debris harmful to humans.
3. unique design, quality assurance and competitive price.
4 can be customized according to needs.
5. diverse styles.
Specification of Laser Optical Lens
1. high transmittance, cutting speed
Light transmission rate of up to 99.5%, which can effectively
improve the cutting speed. Anti-reflection film having a high
damage threshold is coated on both sides of the lens, and
effectively reduces the loss due to reflection.
2. The double-sided coating, durability
Long life, more durable double-layer coating can effectively
protect the lens from spatter and other hazards, thereby increasing
the life of the lens
3. Excellent optical properties and good stability
Excellent thermal stability, excellent laser resistance
4. facilitate the use and not to hurt the hand
45 degrees Protection humane whole point of design, safety and ease
of use, not to hurt the hand
Function:
The main function of laser protective lenses is to prevent dust and
splashes from damaging the focusing lens. However, the prices of
protective lenses on the market vary greatly, ranging from tens of
yuan to hundreds of yuan, and the price varies greatly, and the
quality is also different. Of course, shoddy is not uncommon. If
the lens is not selected properly, it will cause large laser loss,
frequent damage to the protective lens, unstable product quality,
and cause serious losses to the enterprise. Therefore, choosing the
right protective lens is a matter of great importance. The
following introduces Dingchuang Optical Laser to share with you.
The selection of protective lenses for laser cutting machines has
the following three principles:: Shape size matching, this is easy
to understand;: Material, according to different laser powers,
considering the cost of use, it is in the actual application
process , Professional manufacturers divide these two types of
materials into multiple grades, and customers can choose the
corresponding specifications according to actual needs. : Coating,
laser anti-reflection coating, different coating technical
parameters are adopted according to the use environment. Although
the protective lens of the laser cutting machine is a vulnerable
part, in order to improve its utilization rate and reduce
production costs, the protective lens can be cleaned regularly to
achieve the purpose of reuse;

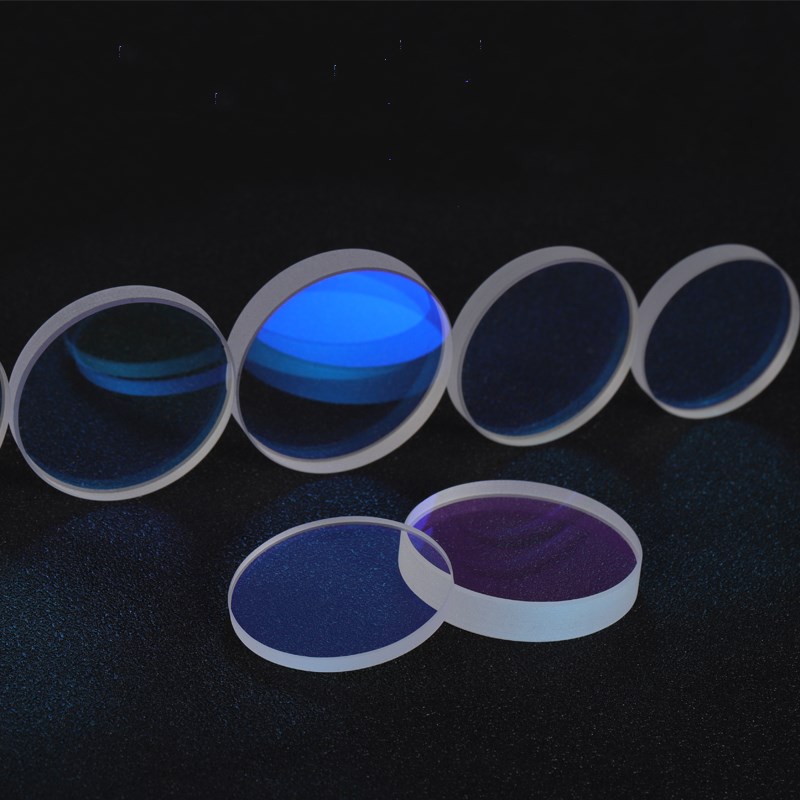

Photo of Laser Optical Lens
FAQ of Laser Optical Lens
1.When ship?
We could ship the item out to you at once after i get your payment
if it in our stock.
2.Are you a manufacture?
Yes, we are factory directly supply.
3.What's your advantages?
Factory dirtectly supply, competitive price, and quality assurance.
