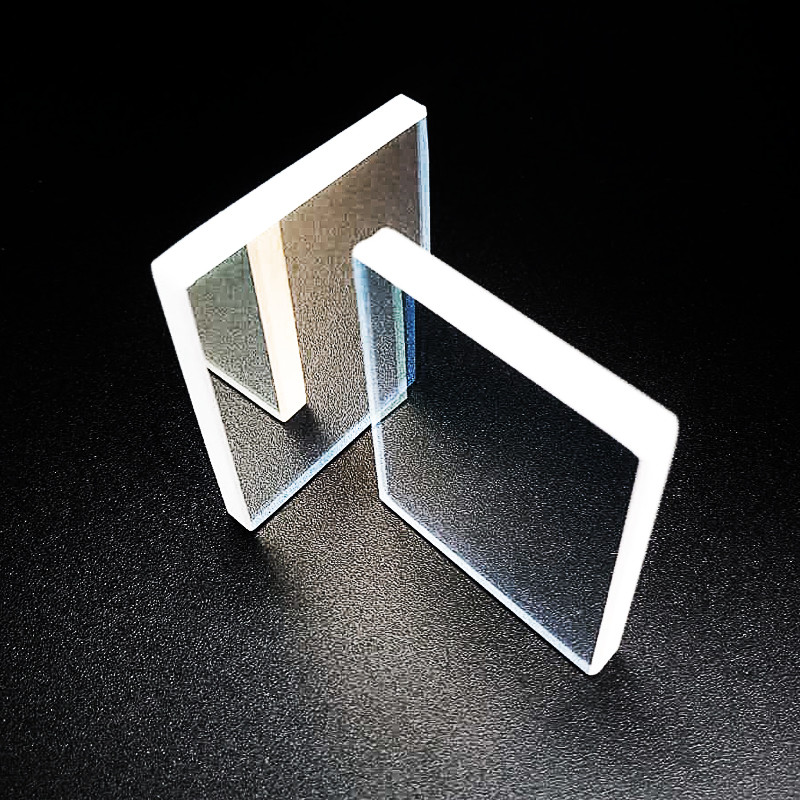

150*130*6mm CCD Lens Quartz Cameras optical glasses visual marking machine

Description:

CCD lenses

Magnagon lenses for chargecoupled devices (CCDs) are used in image processing applications to meet demand for high imaging quality. The lenses show very low flare, low chromatic aberration, and are free of vignetting for the entire magnification scale.

The machine vision detection system uses CCD camera to convert the detected object into image signal and transmit it to special image processing system. According to the information of pixel distribution, brightness and color, it is transformed into digital signal. The image processing system performs various operations on these signals to extract the characteristics of the target, such as area, quantity, position and length, and then according to the preset allowable degree and its The output results of other conditions, including dimensions, angles, number of items, qualified / unqualified, yes / no, etc., can realize automatic identification function.

Product parameters:

Parallelism:1/4 λ

Surface quality:40/20

Chamfer:3mm*45 degree

Power:3000W

Features:

1.Imaging process

CCD is transferred by frame or line under the coordination of synchronous signal and clock signal. The whole circuit is very complex and the readout rate is slow

2.Integration

It is difficult to integrate a / D conversion, signal processing, automatic gain control, precision amplification and storage functions into a single chip because of the complexity of CCD readout circuit with special manufacturing process. Generally, it needs multiple chip combination to realize, and also needs a multi-channel non-standard power supply voltage. With the help of large scale integrated manufacturing process

3.Power and volume

CCD needs a variety of power supply, power consumption is large, the volume is relatively large.

4.Performance index

CCD technology is quite mature

Application:

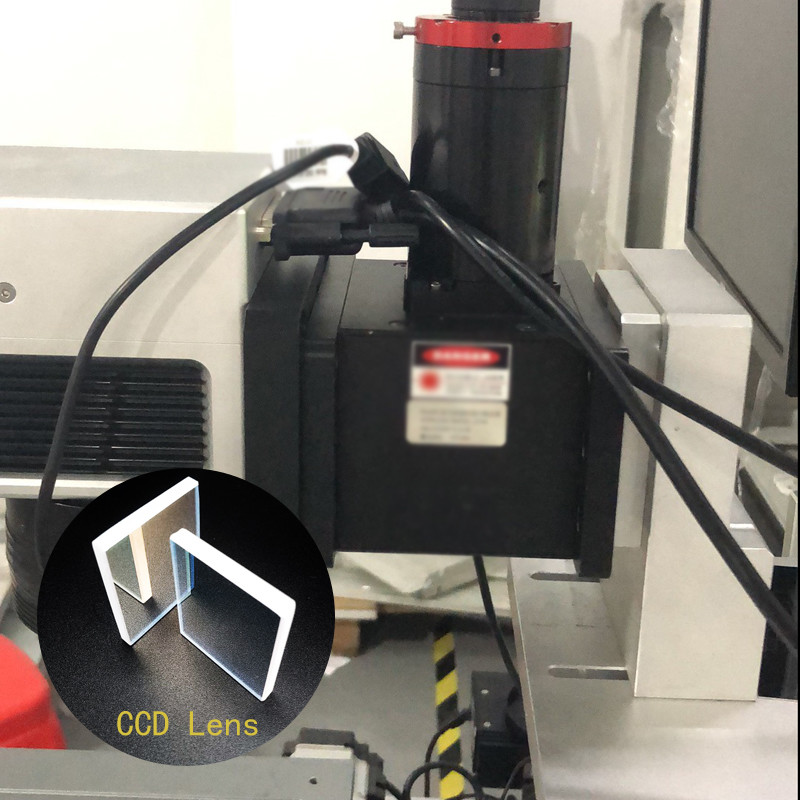

CCD VISUAL MARKING

What is a CCD in a camera?

A charge-coupled device (CCD) is an integrated circuit containing an array of linked, or coupled, capacitors. Under the control of an external circuit, each capacitor can transfer its electric charge to a neighboring capacitor. CCD sensors are a major technology used in digital imaging

Photo:

Shaanxi Ruichen Optoelectronic Technology Co., Ltd., which has a high-tech enterprise, it is specialized in the design, develop, produce and sell of laser optics and light source products.

Company has perfect production equipment and a high level of research and development, production, sales professional team. the unique of Huaxing Bofa is that it could meet customers special application requirements, giving customers the most intuitive form a complete set of product selection and use requirement.

Adhering to the principle of " science , hoest, pragmatism and innovation", and the company adheres to the " technology as the guide, service as the carrier", with a brand new managment concept, Energetic staff of high quality, wholeheartedly for all guests to serve, Sincerely welcome all friends to visit, guidance and negotiate business.

Can be customized according to customer needs to provide the highest quality laser protective lens, long life, can withstand high
power laser.

To ensure the quality and stability of the machine, we use the most advanced production and testing equipment,

including CO2 lasers meter,grinding machines, scanning mirror, We provide customers with affordable, high-quality lens. We have the best supply chain in China and parts manufacturers, and a solid record of quality and innovation, to prove that our 10-year performance of the optics lens.
